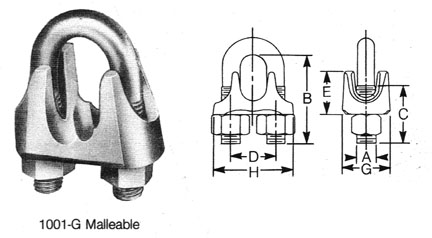

| Wire Rope Clips |
| 1001-G Malleable Iron, Zinc Plated |
Available either unassembled or assembled.
Clips meet specification FF-C-450, Type 1, Class 2.
Malleable iron casting meets ASTM A-47 specification.
All parts have electro-deposited zinc plating that meets
ASTM A-164 specification.
Regular hex nuts.
|
For
Rope
Diameter
(in) |
Stock
Numbers |
Minimum
Number
of Clips
Required |
Dimensions, Inches |
A
UNC-2A |
B |
C |
D |
E |
G |
H |
Clips
Per
Box |
Weight
Per 100
(lbs.) |
Assembled
Clips |
Stock
Numbers |
Clips
Per
Box |
|
1/8 |
699-5234 |
2 |
10-24 |
13/16 |
1/2 |
1/2 |
7/16 |
1/2 |
15/16 |
25 |
4.3 |
750-0024 |
50 |
|
3/16 |
699-5334 |
2 |
1/4 |
31/32 |
5/8 |
9/16 |
1/2 |
9/16 |
1-1/16 |
25 |
6.8 |
750-0034 |
50 |
|
1/4 |
699-5434 |
2 |
5/16 |
1-7/32 |
7/8 |
11/16 |
5/8 |
11/16 |
1-3/8 |
25 |
14.5 |
750-0044 |
25 |
|
5/16 |
699-5534 |
2 |
5/16 |
1-7/32 |
7/8 |
11/16 |
11/16 |
11/16 |
1-3/8 |
25 |
15 |
750-0054 |
25 |
|
3/8 |
699-5634 |
2 |
3/8 |
1-5/8 |
1 |
7/8 |
13/16 |
7/8 |
1-5/8 |
25 |
21.5 |
750-0064 |
25 |
|
7/16 |
699-5734 |
3 |
3/8 |
1-5/8 |
1 |
7/8 |
13/16 |
15/16 |
1-5/8 |
25 |
24 |
750-0074 |
25 |
|
1/2 |
699-5834 |
3 |
7/16 |
2 |
1-1/4 |
1 |
1-1/16 |
1 |
1-7/8 |
25 |
37 |
750-0084 |
25 |
|
9/16 |
699-5934 |
3 |
1/2 |
2-15/16 |
1-15/32 |
1-13/16 |
1-3/16 |
1-1/8 |
2-3/16 |
10 |
55 |
|
|
|
5/8 |
699-6034 |
3 |
1/2 |
2-15/16 |
1-15/32 |
1-13/16 |
1-5/16 |
1-1/8 |
2-3/16 |
10 |
59 |
|
|
|
3/4 |
699-6234 |
4 |
9/16 |
2-9/16 |
1-3/4 |
1-11/32 |
1-1/2 |
1-1/4 |
2-7/16 |
10 |
84 |
|
|
|
7/8 |
699-6435 |
4 |
5/8 |
3-1/16 |
1-13/16 |
1-5/8 |
1-3/4 |
1-3/4 |
2-7/8 |
Bulk |
128 |
|
|
|
1 |
699-6635 |
4 |
5/8 |
3-3/8 |
2-1/16 |
1-3/4 |
1-15/16 |
2 |
3 |
Bulk |
150 |
|
|
|
1 1/8 |
699-6835 |
5 |
3/4 |
3-7/8 |
2-3/16 |
2-1/16 |
2-3/16 |
2-1/8 |
3-7/16 |
Bulk |
243 |
|
|
|
1 1/4 |
699-7035 |
5 |
3/4 |
3-7/8 |
2-3/16 |
2-1/16 |
2-3/8 |
2-1/2 |
3-7/16 |
Bulk |
262 |
|
|
|
1 3/8 |
699-7235 |
6 |
7/8 |
4-1/2 |
2 |
2-9/16 |
2-7/8 |
3-1/8 |
4-3/16 |
Bulk |
456 |
|
|
|
1 1/2 |
699-7435 |
6 |
7/8 |
4-1/2 |
2 |
2-9/16 |
3 |
3-1/4 |
4-1/4 |
Bulk |
512 |
|
|
Wire Rope Clips are not designed for load carrying
purposes, therefore, working load limits have not been
established.
|
|
|
|
|
|
