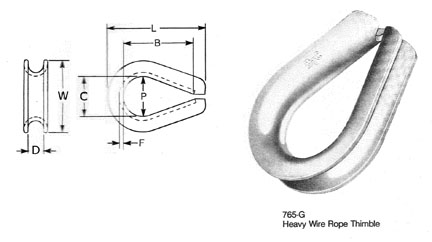

| 765-G Heavy Wire Rope Thimbles |
Made of hot rolled, mild steel.
Meets federal specification FF-T-276b, Type III.
Galvanized to ASTM A-153 specifications.
|
For
Rope
Diameter
(in) |
Stock
Numbers |
Dimensions, Inches |
|
B |
C |
D |
F |
L |
Max.
Pin
Diameter
P |
W |
Weight
Per 100
(lbs.) |
|
1/4 |
626-0201 |
1-5/8 |
7/8 |
9/32 |
1/16 |
2-1/8 |
13/16 |
1-1/2 |
7 |
|
5/16 |
626-0202 |
1-7/8 |
1-1/16 |
3/8 |
5/64 |
2-1/2 |
15/16 |
1-13/16 |
12 |
|
3/8 |
626-0203 |
2-1/8 |
1-1/8 |
7/16 |
7/64 |
3 |
1-1/16 |
2-1/8 |
23 |
|
7/16 |
626-0204 |
2-1/4 |
1-1/4 |
1/2 |
1/8 |
3-1/16 |
1-3/16 |
2-3/8 |
27 |
|
1/2 - 9/16 |
626-0205 |
2-3/4 |
1-1/2 |
5/8 |
9/64 |
3-5/8 |
1-7/16 |
2-11/16 |
49 |
|
5/8 |
626-0206 |
3-1/4 |
1-3/4 |
11/16 |
5/32 |
4-1/4 |
1-5/8 |
3-1/8 |
72 |
|
3/4 |
626-0207 |
3-3/4 |
2 |
13/16 |
7/32 |
5 |
1-7/8 |
3-13/16 |
141 |
|
7/8 |
626-0208 |
4-1/4 |
2-1/4 |
15/16 |
7/32 |
5-1/2 |
2-1/8 |
4-1/4 |
185 |
|
1 |
626-0209 |
4-1/2 |
2-1/2 |
1-1/16 |
1/4 |
6-1/8 |
2-3/8 |
4-15/16 |
300 |
|
1 1/8 - 1 1/4 |
626-0210 |
5-7/8 |
2-7/8 |
1-5/16 |
1/4 |
7 |
2-3/4 |
5-7/8 |
368 |
|
1 3/8 - 1 1/2 |
626-0211 |
6-1/4 |
3-1/2 |
1-9/16 |
1/2 |
9 |
3-3/8 |
7-1/8 |
1214 |

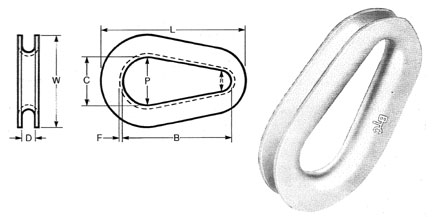

| 745-S Slip-Thru Thimbles |
Made of hot rolled, mild steel. Welded ends. Painted
blue. |
Size
No. |
For
Rope
Diameter
(in) |
Stock
Numbers |
Dimensions, Inches |
|
B |
C |
D |
F |
L |
Max.
Pin
Diameter
P |
R |
W |
Weight
Per 100
(lbs.) |
|
2 |
5/16 - 3/8 |
626-5401 |
3-7/8 |
1-3/4 |
1/2 |
7/64 |
5-1/8 |
1-11/16 |
3/4 |
3-1/4 |
50 |
|
3 |
7/16 - 1/2 - 9/16 |
626-5402 |
4-7/8 |
2-1/4 |
11/16 |
5/32 |
6-1/2 |
2-3/16 |
1 |
4-1/2 |
125 |
|
4 |
5/8 - 3/4 |
626-5403 |
5-7/8 |
2-9/16 |
13/16 |
11/64 |
8-3/16 |
2-1/2 |
1-3/16 |
5-1/8 |
235 |
|
4-SPEC |
5/8 - 3/4 |
626-5404 |
7-5/8 |
3-5/8 |
13/16 |
3/16 |
9-15/16 |
3-9/16 |
1-3/16 |
6-3/8 |
295 |
|
5 |
7/8 - 1 |
626-5405 |
7-3/4 |
3-5/16 |
1-3/32 |
1/4 |
10-3/4 |
3-1/4 |
1-9/16 |
6-15/16 |
590 |

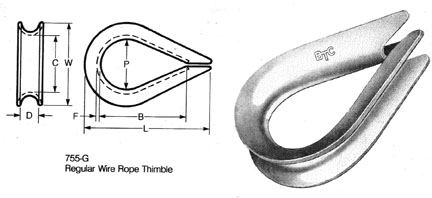

| 755-G Regular Wire Rope Thimbles |
Made of hot rolled, mild steel.
Meets federal specification FF-T-276b, Type II.
Galvanized to ASTM A-153 specifications.
|
For
Rope
Diameter
(in) |
Stock
Numbers |
Dimensions, Inches |
|
B |
C |
D |
F |
L |
Max.
Pin
Diameter
P |
W |
Weight
Per 100
(lbs.) |
|
1/8 |
626-0101 |
1 |
5/8 |
5/32 |
1/16 |
1-1/2 |
9/16 |
15/16 |
2.2 |
|
3/16 |
626-0102 |
1 |
5/8 |
7/32 |
1/16 |
1-1/2 |
9/16 |
15/16 |
2.2 |
|
1/4 |
626-0103 |
1-5/16 |
3/4 |
9/32 |
5/64 |
2 |
11/16 |
1-3/16 |
4.5 |
|
5/16 |
626-0104 |
1-7/16 |
7/8 |
11/32 |
5/64 |
2-1/8 |
13/16 |
1-11/32 |
6.5 |
|
3/8 |
626-0105 |
1-23/32 |
1 |
13/32 |
5/64 |
2-1/2 |
15/16 |
1-9/16 |
9.0 |
|
7/16 |
626-0106 |
2-3/16 |
1-1/4 |
15/32 |
5/64 |
3-1/8 |
1-3/16 |
2 |
16 |
|
1/2 |
626-0107 |
2-3/32 |
1-3/8 |
9/16 |
5/64 |
3-1/8 |
1-5/16 |
2-3/32 |
16 |
|
5/8 - 9/16 |
626-0108 |
2-5/8 |
1-1/2 |
5/8 |
1/8 |
3-3/4 |
1-7/16 |
2-5/16 |
32 |
|
3/4 |
626-0109 |
2-7/8 |
1-5/8 |
25/32 |
9/64 |
4-3/16 |
1-9/16 |
2-1/2 |
40 |
|
7/8 |
626-0110 |
3-1/16 |
1-3/4 |
29/32 |
9/64 |
4-1/2 |
1-5/8 |
2-23/32 |
54 |
|
1 |
626-0111 |
4-1/16 |
2-3/8 |
1-1/16 |
11/64 |
5-3/4 |
2-1/4 |
3-1/2 |
105 |
|
1-1/8 |
626-0112 |
4-5/8 |
2-5/8 |
1-3/16 |
3/16 |
6-1/2 |
2-1/2 |
4 |
140 |
|
1-1/4 |
626-0113 |
4-1/2 |
2-3/4 |
1-5/16 |
3/16 |
6-3/4 |
2-5/8 |
4-1/8 |
165 |
|
1-1/2 |
626-0114 |
5-5/16 |
3-1/4 |
1-5/8 |
3/16 |
7-7/8 |
3-1/8 |
5-1/8 |
245 |
|
2 |
626-0120 |
7-7/8 |
4 |
2-1/8 |
1/4 |
11 |
3-7/8 |
6-1/4 |
525 |
Thimbles are not designed for load carrying
purposes, therefore, working load limits have not
been established.
|
