Wire Rope Slings

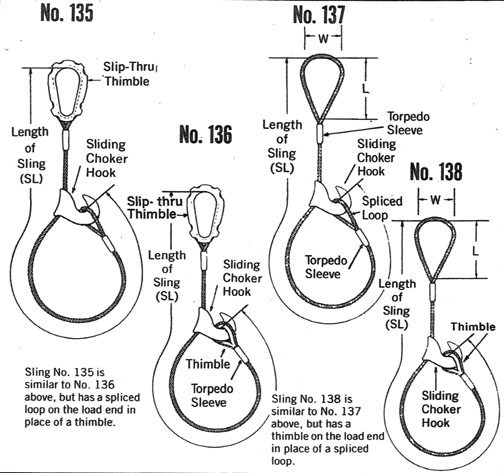

Single Part Legs and Choker Hooks with Flemish Eye splices |
|
|
Nos. 135,136,137,138-Single Part Legs
and Choker Hooks
with Flemish Eye Splices |
|
Diameter
of
Rope (in) |
Rated Capacities in
Tons (2000 lb.) |
|
Rated
Capacities |
Dimensions |
|
|
Purple Rope
Fiber
Core |
Purple Rope
IWRC |
Purple Plus Rope
IWRC |
Slip-Thru Thimbles |
Loops |
|
Slings No. 135-136 |
Slings No. 137-138 |
Sliding Choker Hooks |
|
Size
No. |
W
in |
L
in |
W
in |
L
in |
Size
No. |
Weight
(lbs) |
|
1/4 |
.38 |
.41 |
.48 |
W-2 |
2-1/8 |
4-1/8 |
2 |
4 |
1/4-5/16 |
1.0 |
|
3/8 |
.85 |
.92 |
1.1 |
W-2 |
2-1/8 |
4-1/8 |
3 |
6 |
3/8 |
0.8 |
|
1/2 |
1.5 |
1.6 |
1.9 |
W-3 |
2-3/8 |
4-3/8 |
4 |
8 |
1/2 |
1.25 |
|
5/8 |
2.3 |
2.5 |
2.9 |
W-4 |
3-3/8 |
6-5/8 |
5 |
10 |
5/8 |
2.5 |
|
3/4 |
3.3 |
3.6 |
4.1 |
W-4 |
3-3/8 |
6-5/8 |
6 |
12 |
3/4 |
4.5 |
|
7/8 |
4.5 |
4.8 |
5.6 |
W-5 |
3-3/4 |
7-1/8 |
7 |
14 |
7/8-1 |
10 |
|
1 |
5.9 |
6.3 |
7.2 |
W-5 |
3-3/4 |
7-1/8 |
8 |
16 |
7/8-1 |
10 |
|
1 1/8 |
7.4 |
7.9 |
9.1 |
W-6 |
4-3/8 |
8-3/8 |
9 |
18 |
1 1/8-1 1/4 |
26 |
|
1 1/4 |
9.0 |
9.7 |
11 |
W-6 |
4-3/8 |
8-3/8 |
10 |
20 |
1 1/8-1 1/4 |
62 |
|
1 3/8 |
11 |
12 |
13 |
W-7 |
5 |
9-1/2 |
11 |
22 |
1 3/8-1 1/2 |
42 |
|
1 1/2 |
13 |
14 |
16 |
W-7 |
5 |
9-1/2 |
12 |
24 |
1 3/8-1 1/2 |
42 |
Rated capacities of
choker hitches apply when the angle of the choke is
greater than 120 degrees.
|
|
|
|
