| Wire Rope Sockets |
| 798-S, 798-G Closed Wire Rope
Sockets |
Drop forged and normalized carbon steel.
Available self-colored or galvanized to ASTM A-153 specifications.
|
For
Rope
Diameter
(in) |
Stock
Numbers
|
Dimensions, Inches |
|
S.C. |
Galv. |
A |
B |
C |
D |
F |
J |
K |
L |
Weight
Per 100
(lbs.) |
|
7/16 - 1/2 |
627-0501 |
627-0101 |
5-1/2 |
11/16 |
2 |
1-1/8 |
9/16 |
2-1/2 |
7/8 |
2-1/4 |
145 |
|
9/16 - 5/8 |
627-0502 |
627-0102 |
6-3/8 |
13/16 |
2-5/8 |
1-3/8 |
11/16 |
3 |
1 |
2-1/2 |
258 |
|
3/4 |
627-0503 |
627-0103 |
7-5/8 |
1-1/16 |
3 |
1-5/8 |
13/16 |
3-1/2 |
1-1/4 |
3 |
427 |
|
7/8 |
627-0504 |
627-0104 |
8-7/8 |
1-1/4 |
3-5/8 |
1-7/8 |
31/32 |
4 |
1-1/2 |
3-1/2 |
742 |
|
1 |
627-0505 |
627-0105 |
10 |
1-3/8 |
4-1/8 |
2-1/4 |
1-3/32 |
4-1/2 |
1-3/4 |
4 |
1105 |
|
1 1/8 |
627-0506 |
627-0106 |
11-1/8 |
1-1/2 |
4-1/2 |
2-1/2 |
1-1/4 |
5 |
2 |
4-1/2 |
1400 |
|
1 1/4-1 3/8 |
627-0507 |
627-0107 |
12-5/16 |
1-5/8 |
5 |
2-3/4 |
1-1/2 |
5-1/2 |
2-1/4 |
5 |
2100 |
|
1 1/2 |
627-0508 |
627-0108 |
14-1/8 |
1-15/16 |
5-3/8 |
3-1/8 |
1-5/8 |
6 |
2-1/2 |
6 |
2800 |
|

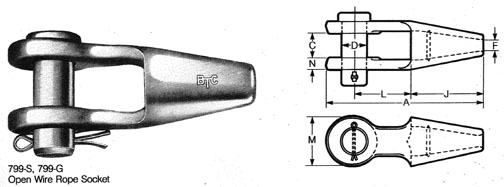

799-S, 799-G Open Wire Rope
Sockets
 |
For
Rope
Diameter
(in) |
Stock
Numbers
|
Dimensions, Inches |
|
S.C. |
Galv. |
A |
C |
D |
F |
J |
L |
M |
N |
Weight
Per 100
(lbs.) |
|
7/16 - 1/2 |
627-0401 |
627-0201 |
5-9/16 |
1 |
1 |
9/16 |
2-1/2 |
2 |
1-7/8 |
1/2 |
225 |
|
9/16 - 5/8 |
627-0402 |
627-0202 |
6-3/4 |
1-1/4 |
1-3/16 |
11/16 |
3 |
2-1/2 |
2-1/4 |
9/16 |
403 |
|
3/4 |
627-0403 |
627-0203 |
7-15/16 |
1-1/2 |
1-3/8 |
13/16 |
3-1/2 |
3 |
2-5/8 |
5/8 |
543 |
|
7/8 |
627-0404 |
627-0204 |
9-1/4 |
1-3/4 |
1-5/8 |
31/32 |
4 |
3-1/2 |
3-1/8 |
3/4 |
967 |
|
1 |
627-0405 |
627-0205 |
10-9/16 |
2 |
2 |
1-3/32 |
4-1/2 |
4 |
3-3/4 |
7/8 |
1486 |
|
1 1/8 |
627-0406 |
627-0206 |
11-13/16 |
2-1/4 |
2-1/4 |
1-1/4 |
5 |
4-1/2 |
4-1/8 |
1 |
2150 |
|
1 1/4-1 3/8 |
627-0407 |
627-0207 |
13-3/16 |
2-1/2 |
2-1/2 |
1-1/2 |
5-1/2 |
5 |
4-3/4 |
1-1/8 |
3150 |
|
1 1/2 |
627-0408 |
627-0208 |
15-1/8 |
2-3/4 |
2-3/4 |
1-5/8 |
6 |
6 |
5-3/8 |
1-3/16 |
4450 |
Drop forged and normalized carbon steel.
Available self-colored or galvanized to ASTM A-153 specifications. |
|
|
|
|
|
|
