Wire Rope Slings - Single Rope Legs
No. 105 Sling

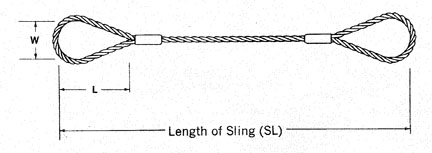

w/ Single Rope Legs and Flemish Eye Splices




Dia.
of Rope (in)
Min Length (SL)
of Sling (ft-in)


Rated Capacities in Tons (2000 lb.)

Loop
Dimensions

Purple Rope
IWRC

Purple Plus Rope
IWRC

W
in
L
in.
Choker
Hitch

Single
Leg
Vertical

|-----------Basket Hitch---------|

Choker
Hitch
Single
Leg
Vertical

|-----------Basket Hitch---------|

30
Degrees
45
Degrees
60
Degrees
30
Degrees
45
Degrees
60
Degrees
1/4 1-6 2 4 .41 .56 .97 .79 .56 .48 .65 1.1 .92 .65
3/8 2 3 6 .92 1.2 2.1 1.7 1.2 1.1 1.4 2.4 2.0 1.4
1/2 2-6 4 8 1.6 2.2 3.8 3.1 2.2 1.9 2.5 4.3 3.5 2.5
5/8 3 5 10 2.5 3.4 5.9 4.8 3.4 2.9 3.9 6.8 5.5 3.9
3/4 3-6 6 12 3.6 4.9 8.5 6.9 4.9 4.1 5.6 9.7 7.9 5.6
7/8 4 7 14 4.8 6.6 11 9.3 6.6 5.6 7.6 13 11 7.6
1 4-6 8 16 6.3 8.5 15 12 8.5 7.2 9.8 17 14 9.8
1 1/8 5 9 18 7.9 10 17 14 10 9.1 12 21 17 12
1 1/4 5-6 10 20 9.7 13 23 18 13 11 15 26 21 15
1 3/8 6 11 22 12 15 26 21 15 13 18 31 25 18
1 1/2 7 12 24 14 18 31 25 18 16 21 36 30 21
1 3/4 8 14 28 19 25 43 35 25 21 28 48 40 28
2 9 16 32 24 32 55 45 32 28 37 64 52 37
2 1/4 10 18 36 30 39 68 55 39 35 44 76 62 44
2 1/2 11 20 40 37 47 81 66 47 42 54 94 76 54
2 3/4 12 22 44 44 57 99 81 57 51 65 113 92 65
3 13 24 48 52 67 116 95 67 60 77 133 109 77
3 1/2 16-6 32 64 69 88 152 124 88 79 102 177 144 102
3 3/4 18 36 72 78 100 173 141 100 90 115 199 163 115
4 20 40 80 88 113 196 160 113 101 130 225 184 130
4 1/2 24 50 100 108 139 241 197 139 124 160 277 226 160

Rated capacities of basket hitches are based on a minimum diameter of curvature at the point of load contact of 40 times the rope diameter for slings 1/4" thru 1" diameter, and 25 times the rope diameter for slings 1-1/4" diameter and larger.
