| Wire Rope Clips |
| 1000-G Forged Carbon Steel,
Galvanized |
Clips meet specification FF-C-450, Type 1, Class 1.
Base is drop forged carbon steel.
Heavy hex nuts.
All parts galvanized to ASTM A-153 specifications.
|
For
Rope
Diameter
(in) |
Stock
Numbers |
Minimum
Number
of Clips
Required |

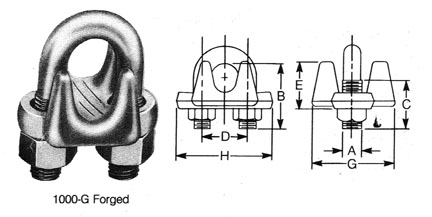

Dimensions, Inches |
A
UNC-2A |
B |
C |
D |
E |
G |
H |
Clips
Per
Box |
Weight
Per 100
(lbs.) |
|
1/8 |
699-0234 |
2 |
7/32 |
3/4 |
7/16 |
1/2 |
7/16 |
13/16 |
1 |
100 |
6 |
|
3/16 |
699-0334 |
2 |
1/4 |
15/16 |
9/16 |
5/8 |
1/2 |
15/16 |
1-1/8 |
100 |
10 |
|
1/4 |
699-0434 |
2 |
5/16 |
1-1/32 |
5/8 |
23/32 |
11/16 |
1-1/8 |
1-7/16 |
100 |
18 |
|
5/16 |
699-0534 |
2 |
3/8 |
1-15/16 |
13/16 |
7/8 |
3/4 |
1-5/16 |
1-11/16 |
100 |
32 |
|
3/8 |
699-0634 |
2 |
7/16 |
1-1/2 |
15/16 |
1 |
29/32 |
1-9/16 |
1-15/16 |
100 |
48 |
|
7/16 |
699-0734 |
3 |
1/2 |
2 |
1-1/8 |
1-1/8 |
1 |
1-11/16 |
2-1/4 |
50 |
72 |
|
1/2 |
699-0834 |
3 |
1/2 |
1-7/8 |
1-1/8 |
1-1/8 |
1-1/16 |
1-13/16 |
2-1/4 |
50 |
76 |
|
9/16 |
699-0934 |
3 |
9/16 |
2-7/16 |
1-3/8 |
1-1/4 |
1-9/32 |
2 |
2-7/16 |
50 |
96 |
|
5/8 |
699-1034 |
3 |
9/16 |
2-3/8 |
1-1/2 |
1-1/4 |
1-9/32 |
2-1/16 |
2-7/16 |
50 |
105 |
|
3/4 |
699-1234 |
4 |
5/8 |
2-3/4 |
1-1/2 |
1-1/2 |
1-1/2 |
2-5/16 |
2-13/16 |
25 |
160 |
|
7/8 |
699-1434 |
4 |
3/4 |
3 |
1-7/8 |
1-3/4 |
1-17/32 |
2-1/2 |
3-1/4 |
25 |
240 |
|
1 |
699-1634 |
5 |
3/4 |
3-1/2 |
2 |
1-7/8 |
1-3/4 |
2-3/4 |
3-3/8 |
25 |
270 |
|
1 1/8 |
699-1834 |
6 |
3/4 |
3-7/8 |
2-1/8 |
2 |
1-29/32 |
3 |
3-5/8 |
10 |
340 |
|
1 1/4 |
699-2034 |
7 |
7/8 |
4-1/4 |
2-3/8 |
2-1/4 |
2-7/32 |
3-1/4 |
4 |
10 |
468 |
|
1 1/2 |
699-2434 |
8 |
7/8 |
4-15/16 |
2-1/4 |
2-9/16 |
2-9/16 |
3-1/2 |
4-3/8 |
10 |
600 |
|
1 3/4 |
699-2835 |
8 |
1-1/8 |
5-13/16 |
2-3/4 |
3-1/16 |
2-3/4 |
3-3/4 |
5-5/16 |
Bulk |
900 |
|
2 |
699-3235 |
8 |
1-1/4 |
6-1/2 |
3 |
3-3/8 |
3-1/8 |
4-1/4 |
5-7/8 |
Bulk |
1230 |
Wire Rope Clips are not designed for load carrying
purposes, therefore, working load limits have not been
established.
|
|
|
|
|
|
